Fuel Lift/Transfer/Feed/Supply/Prime Pump for Perkins 4 cylinder 4.212/4.236/4.248 Late Series Engines w/ 4-Bolt Mount Pump

See related products below for 2-bolt mount pump used on early models.

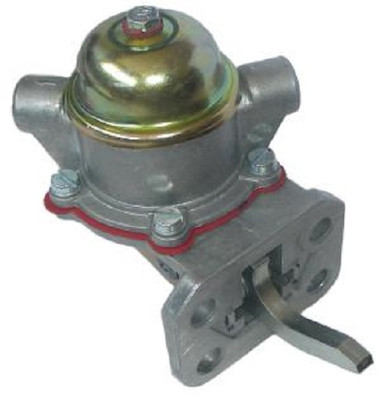

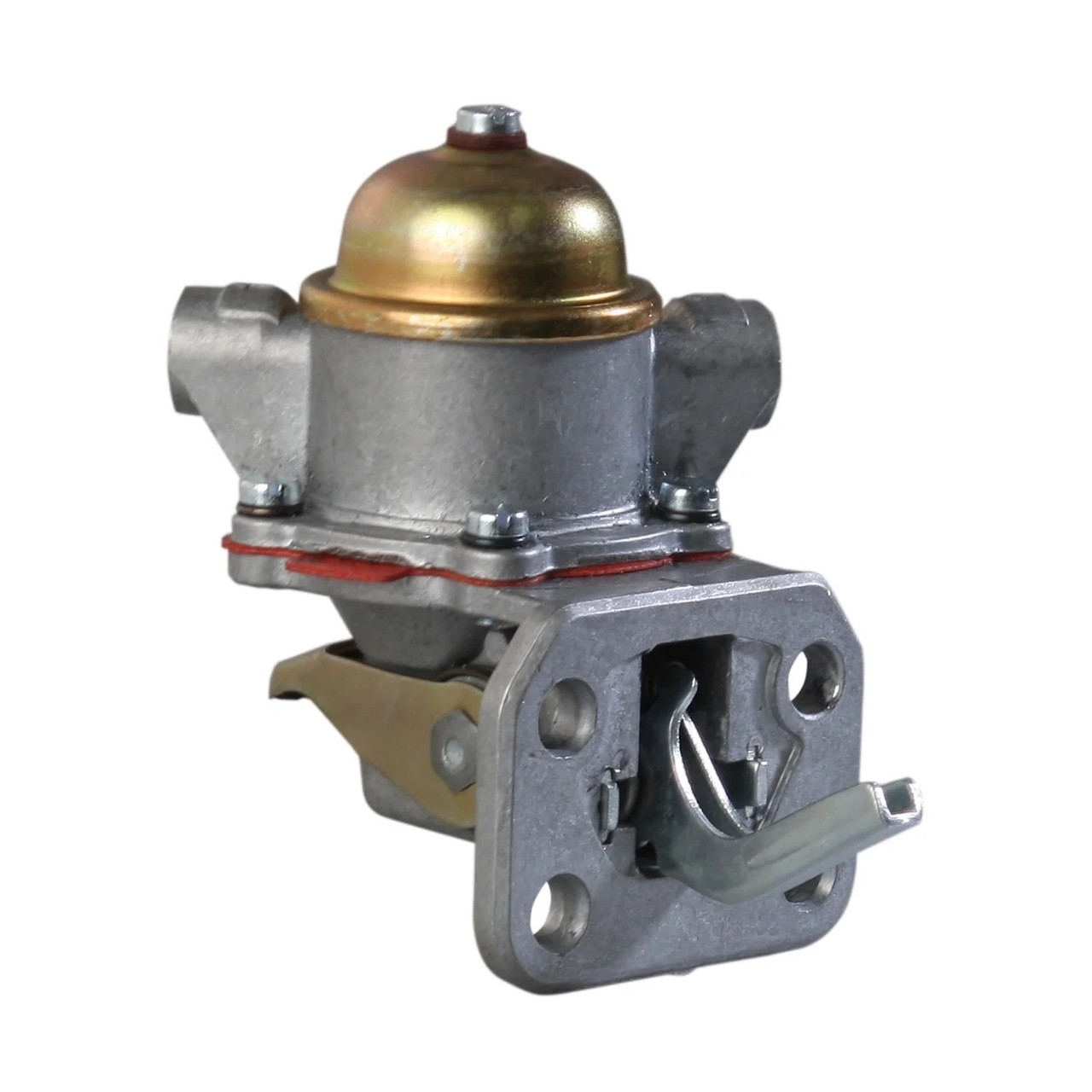

This pump is available in 2 different port orientation styles.  Standard is as main photo.  Alternate is as 2nd photo and is used on some models.
NOTE:  Pumps are identical and top can be re-clocked as needed.

• 4-hole mount
• Gasket included
• Replaces Perkins/CAV p/n:  2641728, 2641A053, 2641713, 2641725, 2641A071, 2641A073, 2641709, 2641711, ULPK0001, ULPK0003
• Replaces OEM p/n:  3118234R91, 4222108R91, 1873/5, 7990178, 312765497, 17/402100, 17/402200, 3637250M91, 3641400M91, 461-259, AK-064, FP259, SP019, 505508, 505642, 17401000, 17400400, 12641725, 12641728, 136851123, 3685R007, 3640785M1, 3641402M91, 3641408M91, 4222091M91, 4222108M91, 3641404M1, 3637290M91, 7701031881, 6005014391 & more
• As used on:  Late Series 4.212, 4.236, 4.248 engines, used in numerous tractor, combine, truck, loader, backhoe, excavator, generator, welder etc. applications by manufacturers such as:

  Allis-Chalmers
  Caterpillar
  Clark
  Dronningborg
  Eicher (4066, 4072, Buffel 74, Mammut 11)
  Fiat-Allis
  Hanomag
  Hyster
  IH International Harvester (475 UK)
  JCB
  Landini (6400, 6500, 6530, 6550, 6560, 6830, 6840, 6860, 6870, 6880, 7500, 7530, 7550, 7560, 7830, 7860, 7870, 7880, 8500, 8530, 8550, 8560, 8830, 8860, 8870, 8880, Advantage 65/75, Blizzard 65/75/85, C6500, C6830, C7830, CF6830, Globus 55/65/75/85, Trekker 65/70/75/85)
  Lincoln Electric
  Massey-Ferguson
  Renault (70-12, 70-14, 70-32, 70-34, 80-12, 80-14, 80-32, 80-34, Ceres 75)
  Volvo-BM (2200, 2204, 2250, 2254, T500)

  and many others with these engines
• Brand:  FDR
• MPN:  9003 (STD) / 9028 (ALT)
